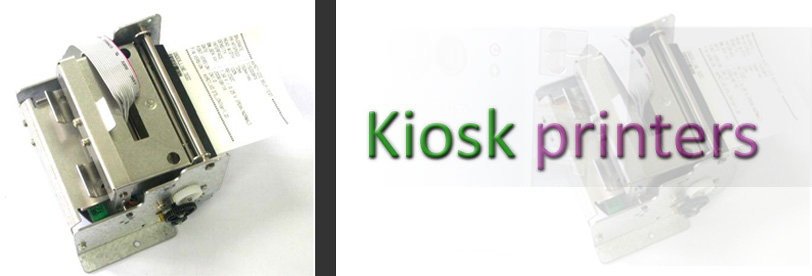

| 3 Inch Thermal Printer |
| |
 |
| |
| Features |
- High Printing Speed
- High Resolution Text & Graphic Printing
- Auto Cutter
- Paper Auto Loading
- Easy Downloading Firmware & Downloading Image(logo)
- Very Reliable & Easy to Install
- Effective
- Option : Paper Holder & Presenter (Retraction)
|
| |
| Application |
- Auto Teller Machine, Ticket & Receipt Terminal
- Information / Internet KIOSK
- Gambling & Lottery Machine
- Analyzer
|
| |
| Specification |
| Print |
Printing
method |
Direct Thermal |
| Resolution |
8dots/mm (203dpi) |
| Print speed |
150mm/sec |
| |
| Paper |
Paper width |
80mm |
| Effective Printing width |
72 mm |
| Paper feeding method |
Friction feeding |
| Paper Roll capacity |
Out diameter : Max. 230Ø (Approx. 550m) |
| |
| Operating voltage |
- Motor/head : 24V |
| - Logic : 5V |
| - Sensor : 5V |
| |
| Interface |
Serial (RS-232C) / USB |
| |
| Reliavility |
Head Life |
50km |
| Cutter |
1,000,000 Cuts |
| |
| Auto Cutter |
Type |
Guillotine (Full cutting and Partial cutting) |
| |
| Driver |
Windows driver (XP, VISTA) / Linux (CUPS) |
| |

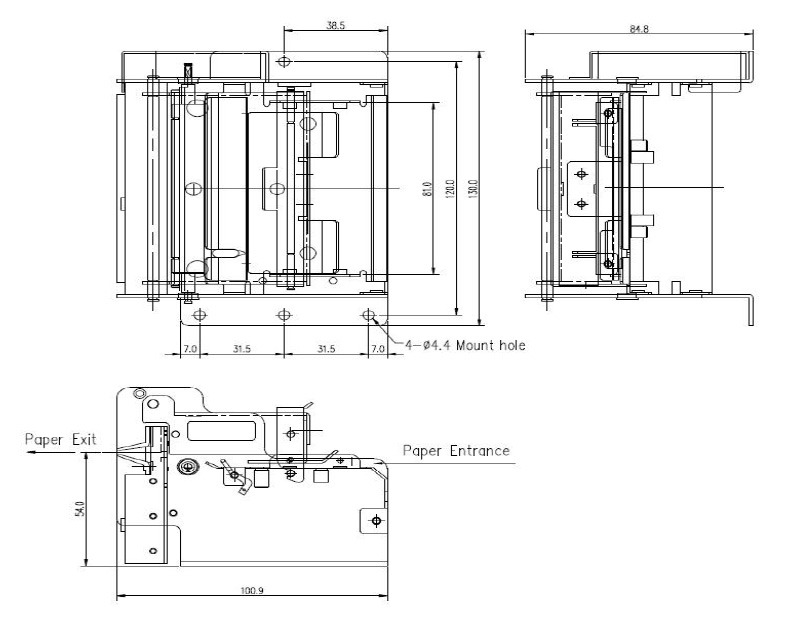

| Dimension |
130(W) x 84.8(H) x 100.9(L) mm |
| |
| Weight |
Approx. 880g |
| |
|
| |
|
| |
| |
| |
|
|
|
